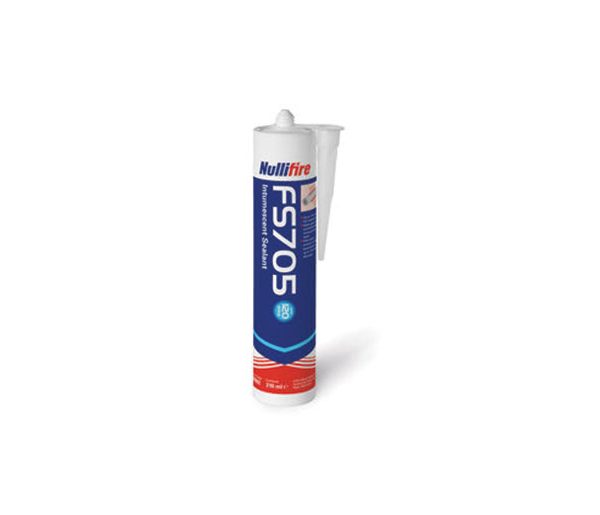

Nullifire FS705 Intumescent Sealant

Nullifire FS705 Intumescent Sealant

Description

FS705 is a graphite based product which when exposed to fire expands protecting penetrations including cables, cable bunches, cable trays, plastic and metallic pipes. FS705 maintains the integrity and insulation performance of the seal through masonry and plasterboard. FS705 is designed to close off gaps and penetrations in compartment walls and floors, to provide up to 2 hours fire resistance.

Make an enquiry

What the experts have to say

Fire Resistance

FS705 Suitability

FS705 is suitable for the following service penetrations up to 125 mm; PVC pipes, ABS pipes, HDPE pipes including Armaflex and glass wool insulation. FS705 can also be used with metallic pipes, cables and cable bunches including telecommunication cables, cable trays and cable ladders.

Categories: Passive Fire Protection, Sealants & Coatings

Benefits
Technical Data
Downloads
Product Images

Certified to the latest European standards EN 1366-3 and EN1366-4, Classified to EN 13501-2:2007, CE Marked to ETAG-026
Up to 120 minutes fire resistance
Air permeability testing to 600 Pa
Acoustics up to 63 dB

Can be used in FB747-50 Batt
Tested with combustible pipes up to 125 mm
Tested for use in linear gaps up to 20 mm
Tested with metallic pipes, cables, cable bunches, cable trays and cable ladders

Fire Resistance:

Up to 2 hours

Acoustics:

Up to 63 dB

Assumed working of life:

10 years

Classification:

EN 13501, CE ETAG-026

Air permeability:

600Pa EN1026 - 100Pa 11.1/16.7 m3/h/m2

Density:

1.3 g/cm³
