Nullifire FB805 Fire Curtain
Nullifire FB805 Fire Curtain
Description

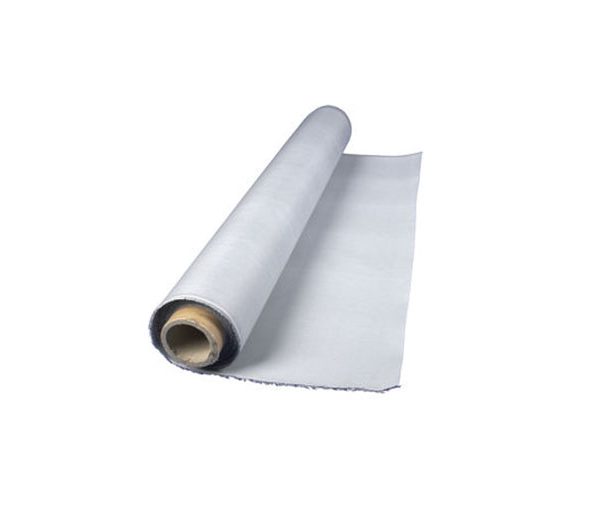

A lightweight, flexible fire curtain which provides a barrier to smoke and flames. It consists of a specially coated glass fabric material. This is stretched between perimeter fixings and staple jointed for maximum effectiveness. FB805 is suitable for up to 30 minutes fire resistance (See technical datasheet).
What the experts have to say
Fire Resistance
Suitability
FB805 Fire Curtain is designed for: subdividing ceiling, subdividing roof and partitioning the void below a raised floor. The curtain should only be used in dry/ internal situations.
Tested in accordance with BS 476-Pt20
Smoke and cavity fire barrier
Approval with service penetrations
Dry installation
Suitable for large openings up to 10.8 m
Fire Resistance:
Up to 30 minutes
Packaging:
1000 mm x 50 m Roll
Max Opening:
up to 10.8 m
Storage:
Store in a clean, dry area
Shelf Life:
Unlimited when stored as recommended
PERFORMANCE:
MINUTES
250 mm steel duct:
30
112 mm steel pipe:
30
50 mm x 60 mm steel trunking:
30
300 mm cable tray:
30
Cables up to 35 mm:
30
Full Information:
Check out the full datasheet available in the Downloads section!
