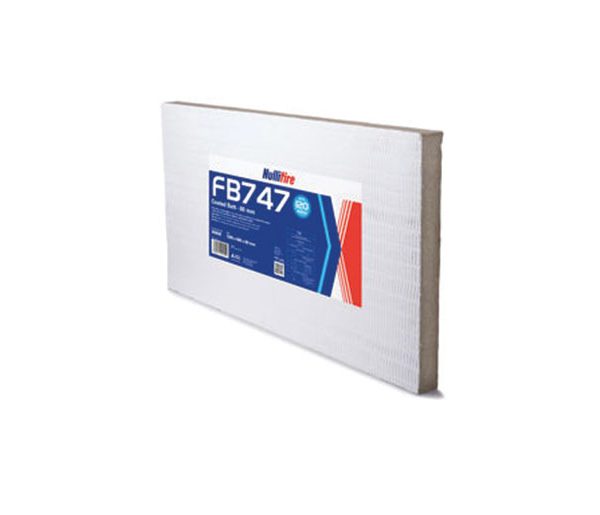

Nullifire FB747-60 Coated Batt

Nullifire FB747-60 Coated Batt


FB747-60 is a lightweight 2 hour fire barrier comprising of a mineral fibre board coated with an elastomeric, ablative water based sealant. In the event of a fire, FB747-60 prevents the passage of fire and smoke by re-instating the compartment floor or wall when penetrated by building services. This system also provides thermal, acoustic and air sealing performance.

Make an enquiry

    What the experts have to say

    Fire Resistance
    FB747-60 Suitability
    FB747-60 is suitable for the following service penetrations; metallic and plastic pipes, cable trays, cable ladders, trunking, single and bunched cables. Typical areas of use include health and leisure facilities, schools, universities, commercial, retail and industrial buildings.
    • Ideal for sealing large, unsupported openings

    • Suitable for use in floor and wall penetrations

    • Quick and easy to install - no special tools required

    • Provides an effective barrier to the spread of smoke and fire for up to 2 hours

    • Certified to the latest British and European standards EN 1366-3 and EN 13501: Pt 2

    Fire Resistance:
    Up to 2 hours
    Available Sizes:
    160 kg/m3 - 1200 mm x 600 mm x 60 mm
    EN1366-3, EN 13501: Pt 2, CE ETAG-026
    Supplied individually
    Store between +5°C and +35°C in dry conditions.
    Shelf Life:
    Unlimited when stored as recommended.
    Wall Single:
    1.125 m /2.250 m
    Wall Double:
    1.050 m /2.100 m
    Floor Double:
    3.500 m /1.125 m
    Full Information:
    Check out the full datasheet available in the Downloads section!
