Nullifire FR270 High Strength Structural Compound
Nullifire FR270 High Strength Structural Compound
Description
Used to Stop the Spread of Smoke and Fire through Compartment Walls and Floors

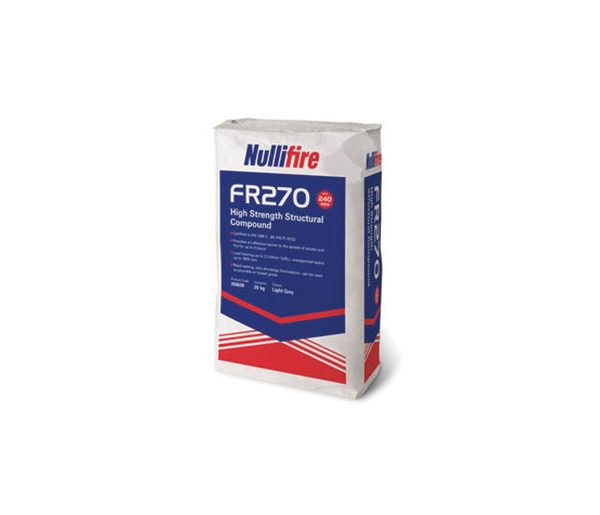

FR270 High Strength Structural Compound is a single part gypsum-based compound providing up to 4 hours fire resistance. FR270 is used to stop the spread of smoke and fire along services that pass through compartment walls and floors, whilst providing an unsupported load bearing capacity. The system also provides thermal, acoustic and air sealing performance.
What the experts have to say
Fire Resistance
FR270 Suitability
FR270 is suitable for the following service penetrations; single and bunched cables, cable trays, cable ladders, trunking, steel and copper pipes, unsupported multiple ducting/ damper penetrations, PVC and uPVC pipes. Typical areas of use include health and leisure facilities, schools, universities, retail stores and industrial buildings.
Fire resistance tested in accordance with EN 1366-3, ETAG 026 and Classification 13501:2
Suitable for rigid and flexible walls
Acoustics up to 50 dB
Minimum 25 years working life as per ETAG 026
Rapid setting, zero shrinkage formulation - can be used as pourable or trowel grade
Fire Resistance:
Up to 4 hours
Classification:
13501:2, CE ETAG-026
Coverage:
Approximate volume of compound required per m2: Seal thickness 100 mm No. of bags 6
Setting times:
Between 30 and 90 minutes.
Assumed Working Life:
25 years
Pot life:
10-20 minutes
Acoustics:
Up to 50 dB
Water ratio:
Pourable Mix ratio of 3 : 1 / Trowelable Mix ratio of 4 : 1
Shelf Life:
12 months minimum when stored as recommended.
Full Information:
Check out the full datasheet available in the Downloads section!
